MeshLine

Mesh replacement for THREE.Line

Instead of using GL_LINE, it uses a strip of triangles billboarded.

Demos

• Demo: play with the different settings of materials
• Graph: example of using MeshLine to plot graphs
• Spinner: example of dynamic MeshLine with texture
• SVG: example of MeshLine rendering SVG Paths
• Shape: example of MeshLine created from a mesh
• Birds: example of MeshLine.advance() by @caramelcode (Jared Sprague) and @mwcz (Michael Clayton)

2026 update

Disclaimer: this library is from 2015. three.js has had lines with width in its addons since r91 (2018): Line2, LineSegments2 and LineMaterial, with widths in pixels or in world units, dashes, and colors per vertex. If that's all you need, use those. There's also meshline, a fork of this library maintained by pmndrs

What this library has that the lines of three.js don't: a width that changes along the line, a texture along the line, a visibility to draw only part of it, and advance() to move a trail cheaply.

The library has been updated for current three.js, so code written for version 1.x might need changes. What changed:

• it's an ES module only, and it needs three.js r155 or later. The script tag and require are gone
• with sizeAttenuation off, lineWidth is the width in pixels. It used to be half of that, so those lines are now twice as thick: halve the value to get the old look
• resolution is not required anymore. The material takes the size of what it's being rendered to, canvas or render target, and follows it when it changes
• the colors match the rest of the scene: the line takes part in the color management and the tone mapping of three.js, it used to be darker from r152 on
• the gaps between dashes, and the part of the line past visibility, are not drawn at all. They used to be drawn transparent, hiding what was behind them
• lines follow the fog of the scene, like the materials of three.js. Set material.fog = false to leave them out
• clipping planes and the logarithmic depth buffer work
• the width is right with orthographic cameras that are off centre
• lines of more than 32767 points work, they used to wrap around
• setPoints() takes any typed array, an array of vectors or a BufferAttribute too, and throws on anything else
• setting the points again on a line of the same length reuses its buffers
• material.clone() and material.copy() work
• raycasting takes the width of the line at each point, widths in pixels, dashes and visibility into account, and returns the closest hit only

How to use

• Import the module
• Create an array of 3D coordinates
• Create a MeshLine and assign the points
• Create a MeshLineMaterial
• Use MeshLine and MeshLineMaterial to create a THREE.Mesh

Include the script

Use npm to install it, alongside three.js

npm i three three.meshline

and import it in your code

import * as THREE from 'three';
import { MeshLine, MeshLineMaterial, MeshLineRaycast } from 'three.meshline';

It's a plain ES module, so it also works without a bundler as long as an import map resolves three (see demo/index.html).

Create an array of 3D coordinates

First, create the list of numbers that will define the 3D points for the line.

const points = [];
for (let j = 0; j < Math.PI; j += (2 * Math.PI) / 100) {
  points.push(Math.cos(j), Math.sin(j), 0);
}

An array of THREE.Vector3, any typed array and a BufferAttribute work as well. MeshLine also accepts a BufferGeometry looking up the vertices in it.

const points = [];
for (let j = 0; j < Math.PI; j += 2 * Math.PI / 100) {
  points.push(new THREE.Vector3(Math.cos(j), Math.sin(j), 0));
}
const geometry = new THREE.BufferGeometry().setFromPoints(points);
const line = new MeshLine();
line.setGeometry(geometry);

Create a MeshLine and assign the points

Once you have that, you can create a new MeshLine, and call .setPoints() passing the list of points.

const line = new MeshLine();
line.setPoints(points);

Note: .setPoints accepts a second parameter, which is a function to define the width in each point along the line. By default that value is 1, making the line width 1 * lineWidth in the material.

// p is a decimal percentage of the number of points
// ie. point 200 of 250 points, p = 0.8
line.setPoints(points, p => 2); // makes width 2 * lineWidth
line.setPoints(points, p => 1 - p); // makes width taper
line.setPoints(points, p => 2 + Math.sin(50 * p)); // makes width sinusoidal

To change a line, call .setPoints() again. If the number of points is the same, the buffers are reused. For a trail there's .advance(), which drops the first point and adds a new one at the end:

line.advance(new THREE.Vector3(x, y, z));

Create a MeshLineMaterial

A MeshLine needs a MeshLineMaterial:

const material = new MeshLineMaterial(OPTIONS);

By default it's a white material of width 1 unit.

MeshLineMaterial has several attributes to control the appereance of the MeshLine:

• map - a THREE.Texture to paint along the line (requires useMap set to true)
• useMap - tells the material to use map (0 - solid color, 1 use texture)
• alphaMap - a THREE.Texture to use as alpha along the line (requires useAlphaMap set to true)
• useAlphaMap - tells the material to use alphaMap (0 - no alpha, 1 modulate alpha)
• repeat - THREE.Vector2 to define the texture tiling (applies to map and alphaMap - MIGHT CHANGE IN THE FUTURE)
• color - THREE.Color, or anything it can be made from, to paint the line with, or tint the texture with
• opacity - alpha value from 0 to 1 (requires transparent set to true)
• alphaTest - cutoff value from 0 to 1
• dashArray - the length and space between dashes. (0 - no dash)
• dashOffset - defines the location where the dash will begin. Ideal to animate the line.
• dashRatio - defines the ratio between that is visible or not (0 - more visible, 1 - more invisible).
• visibility - how much of the line is drawn, from the start (0 - nothing, 1 - the whole line). Ideal to animate the line being drawn.
• sizeAttenuation - makes the line smaller with distance, like any other object (1 - attenuate, the default; 0 - don't attenuate, the width is constant on screen)
• lineWidth - float defining width (if sizeAttenuation is true, it's world units; else is screen pixels)
• resolution - THREE.Vector2 with the size that the pixels of lineWidth refer to. Optional: by default it's the size of the canvas, or of the render target

If you're rendering transparent lines or using a texture with alpha map, you should set depthTest to false, transparent to true and blending to an appropriate blending mode, or use alphaTest.

Use MeshLine and MeshLineMaterial to create a THREE.Mesh

Finally, we create a mesh and add it to the scene:

const mesh = new THREE.Mesh(line, material);
scene.add(mesh);

You can optionally add raycast support with the following.

mesh.raycast = MeshLineRaycast;

The intersection has the point on the line, the distance, and the index of the segment that was hit. Lines with sizeAttenuation off need the camera, so use raycaster.setFromCamera() with them.

Declarative use

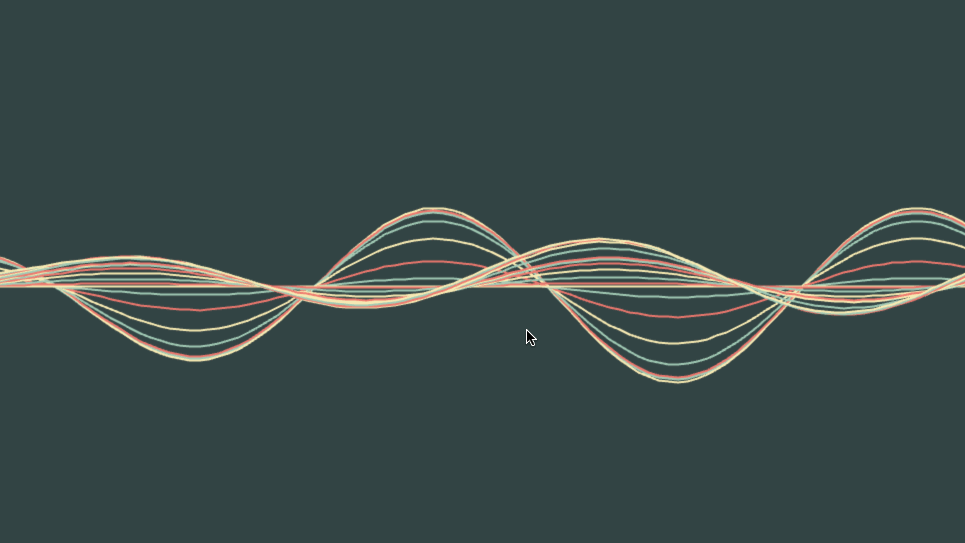

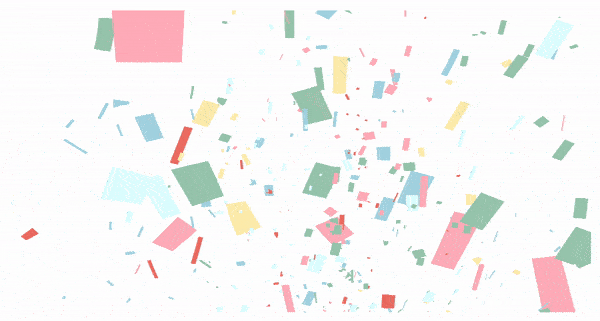

THREE.meshline can be used declaritively. This is how it would look like in react-three-fiber. The live examples below were made with version 1.x.

import { extend, Canvas } from '@react-three/fiber'
import { MeshLine, MeshLineMaterial, MeshLineRaycast } from 'three.meshline'

extend({ MeshLine, MeshLineMaterial })

function Line({ points, width, color }) {
  return (
    <Canvas>
      <mesh raycast={MeshLineRaycast}>
        <meshLine attach="geometry" points={points} />
        <meshLineMaterial
          attach="material"
          transparent
          depthTest={false}
          lineWidth={width}
          color={color}
          dashArray={0.05}
          dashRatio={0.95}
        />
      </mesh>
    </Canvas>
  )
}

Dynamic line widths can be set along each point using the widthCallback prop.

<meshLine attach='geometry' points={points} widthCallback={pointWidth => pointWidth * Math.random()} />

TODO

• Better miters
• Proper sizes

Support

three.js r155 or later, on any browser that runs it. Tested on r155, r163 and r186. For older versions of three.js use version 1.x of this library.

References

• Drawing lines is hard
• WebGL rendering of solid trails
• Drawing Antialiased Lines with OpenGL

License

MIT licensed

Copyright (C) 2015-2016 Jaume Sanchez Elias, https://www.clicktorelease.com
